Introduction

Simultaneous Localization and Mapping (SLAM) technology has become a turning point for surveying professionals, enabling fast, accurate, and mobile 3D mapping. SLAM scanners, often categorized under Indoor Mobile Mapping Systems (iMMS), offer significant efficiency improvements over traditional Terrestrial Laser Scanners (TLS). By leveraging advanced algorithms and multiple sensors, SLAM scanners produce detailed 3D point clouds, even in environments where GPS signals are unavailable.

This guide delves into the core principles of SLAM, its impact on survey accuracy, and how to optimize workflows for high-quality results. We’ll also explore the advantages and limitations of SLAM technology and highlight its growing role in modern surveying.

Slam Scanners for suveryors - Point Clouds

What is SLAM?

SLAM (Simultaneous Localization and Mapping) is a technology that enables a device to determine its position and orientation while simultaneously mapping its surroundings. Initially developed for robotics, SLAM technology is now integral to mobile 3D scanning, allowing devices to create precise 3D representations of their environment in real time.

At its core, SLAM fuses data from various onboard sensors such as LiDAR, RGB cameras, and Inertial Measuring Units (IMUs) to track the scanner’s movement. As the scanner moves, SLAM algorithms continually update its position relative to the environment, much like a traverse method in traditional surveying. This ongoing process allows the system to generate an accurate, spatially aligned point cloud of the scanned area.

Kinematic Scanner - SLAM scanner - Point Clouds

How does SLAM work?

SLAM systems operate using a continuous feedback loop. The process can be broken down into several steps:

  1. Initialization: As the system starts, the SLAM algorithm processes initial sensor data to establish a reference position.
  2. Observation and position estimation: As the scanner moves, it collects new data from sensors, compares it to previous observations, and refines its estimated position.
  3. Data fusion: Data from multiple sensors (LiDAR, IMU, photogrammetry) is combined to track movement and capture environmental features.
  4. Trajectory calculation: The system calculates a new position based on the previous one, repeating this step continuously.

This process is simular to how surveyors use traverse points, with each new position relying on the accuracy of the previous one. However, in SLAM systems, the process is fully automated and repeated thousands of times per second.

Surveyor with SLAM scanner - Point Clouds of Pointorama

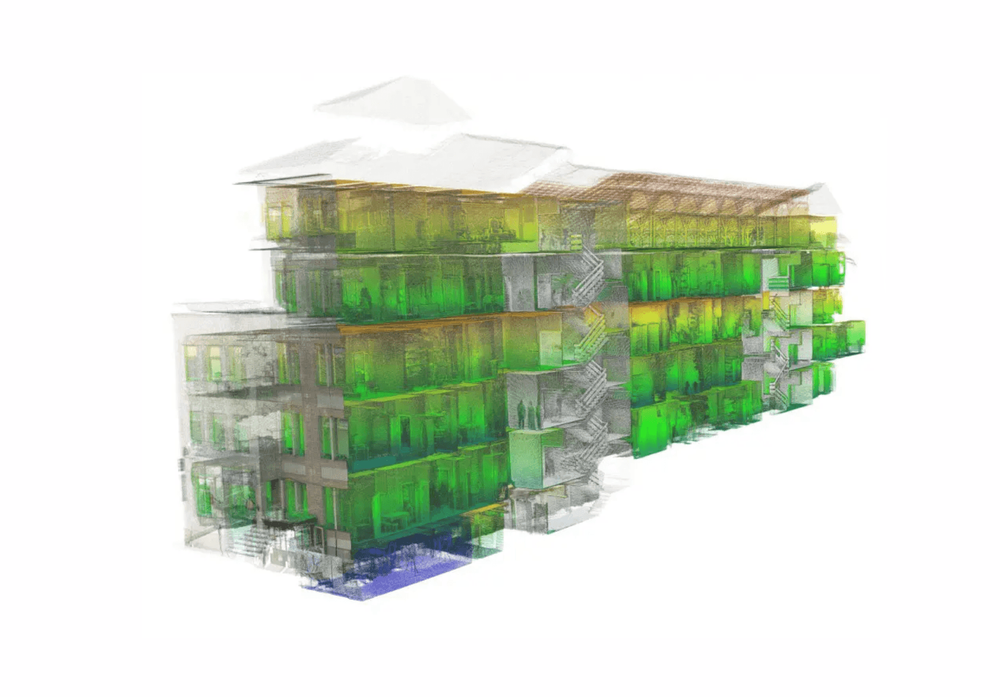

LiDAR scan of building - Pointorama - Source: Kaarta

What are the key components of a SLAM system?

  • LiDAR: Provides high-resolution 3D point data.
  • IMU (Inertial Measurement Unit): Tracks orientation, velocity, and acceleration.
  • RGB Cameras: Enhances visual context and aids in VSLAM (Visual SLAM).

These sensors work together to capture the spatial characteristics of an environment. Advanced SLAM systems may also incorporate photogrammetry or additional sensors for greater precision.

The impact of accuracy for surveryors - Ponitorama - Point Clouds

What is the impact of SLAM on accuracy?

While SLAM offers incredible versatility, its mobile nature introduces unique challenges in accuracy. Unlike a TLS, which captures 3D points from a fixed location, SLAM scanners move as they scan. This movement can cause misalignments in the point cloud, leading to errors like tracking errors and drift.

  • Tracking errors: These occur when the system loses track of its position, often in featureless environments like long hallways.
  • Drift: Sensor errors accumulate over time, causing the system’s position to “drift” away from its true location, reducing point cloud accuracy.

Manufacturers have developed solutions to mitigate these errors, such as:

  • Loop closure: By returning to a previously scanned location, the system identifies overlapping points and adjusts for tracking errors and drift.
  • Control points: Surveyors place known reference points throughout the environment. The scanner’s point cloud is then “snapped” to these control points for precise alignment.

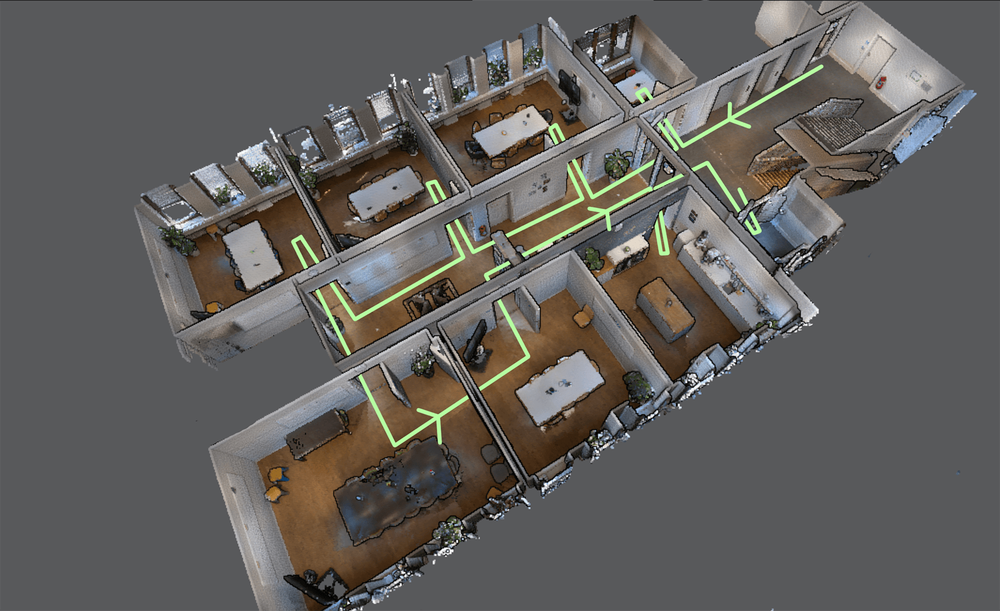

Route for Scanning with a SLAM scanner - Surveyors - Point Clouds

Workflow steps for high-accuracy results

  1. Plan the scan: Identify key areas and determine if loop closure or control points are necessary.
  2. Scan with consistency: Move at a steady pace and avoid abrupt changes in speed or direction.
  3. Use loop closure: Close loops where possible to reduce tracking errors.
  4. Implement control points: For survey-grade accuracy, capture control points using high-precision tools like total stations.
Advantages and limitations of static and kinematic scanner

What are the advantages and limitations?

SLAM technology offers transformative benefits in the realm of data collection, revolutionizing how surveys and mapping are performed. Its speed and efficiency shine when compared to traditional terrestrial laser scanning (TLS), dramatically shortening the time needed to capture data. Moreover, SLAM operates independently of GPS, making it indispensable for environments where GPS signals are absent, such as tunnels or indoor facilities. Its versatility is another standout feature, enabling seamless scanning in both indoor and outdoor settings, and its ability to streamline workflows translates to significant cost savings for projects.

However, SLAM technology does come with limitations that users should consider. Certain environments, like long featureless corridors or areas with highly reflective surfaces, can interfere with tracking accuracy. The technology’s performance is also tied to the quality of its sensors and the sophistication of its algorithms, meaning that subpar equipment or outdated software may compromise results. Additionally, in scenarios lacking loop closures or control points, cumulative errors from drift can impact the precision of the final output. Despite these challenges, understanding and mitigating these limitations ensures SLAM remains a powerful tool in the hands of surveyors and mapping professionals.

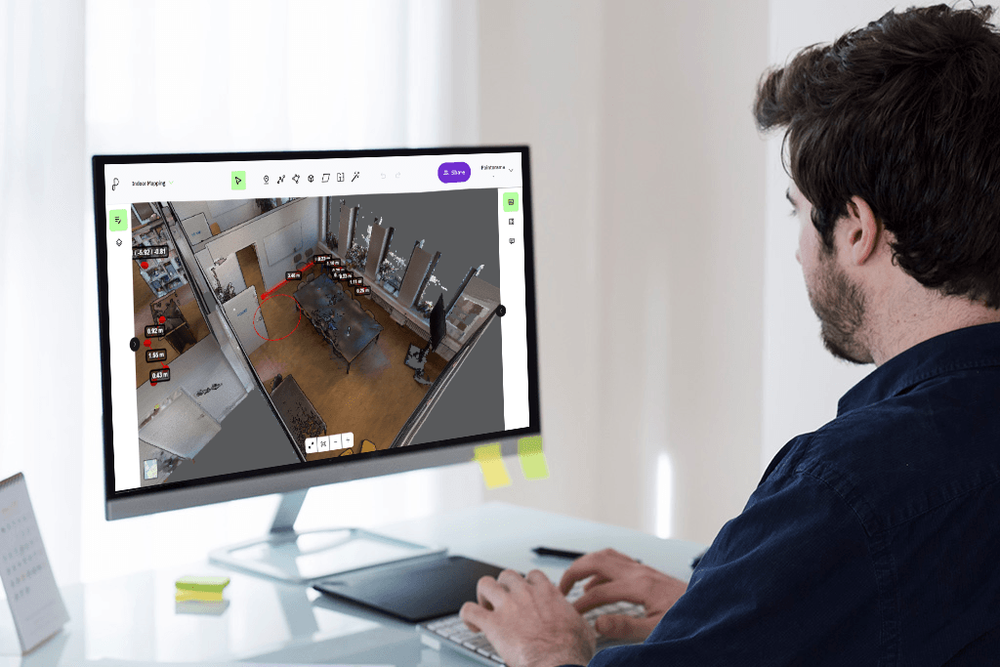

Pointorama Scanner

Types of SLAM-Based systems

  • Indoor Mobile Mapping Systems (iMMS): Portable systems optimized for scanning indoor spaces like buildings and tunnels.
  • Mobile Mapping Systems (MMS): Larger systems mounted on vehicles, used for capturing large outdoor areas.

Both iMMS and MMS use LiDAR technology, but iMMS are designed for indoor use, while MMS are typically vehicle-mounted for mapping large areas like roads or landscapes.

SLAM vs. Terrestrial Laser Scanning (TLS)

Feature SLAM TLS
Mobility Mobile, hand-held Fixed position
Speed Fast data collection Slower due to setup
Accuracy Varies with drift and tracking High accuracy, fixed position
Versatility Indoor/outdoor, no GPS required Requires line of sight
Cost Lower due to faster workflows Higher due to labor intensity
Use case Ideal for situations where extreme accuracy is not required Preferred for tasks demanding high accuracy



Surveyor with SLAM scanner standing in front of building in construction

Real-world applications of SLAM scanners

SLAM-based mobile mapping systems are used across various industries, including:

  • Surveying and mapping: Create point clouds for land surveys, topography, and infrastructure.
  • Construction: Monitor progress, validate as-built models, and support Building Information Modeling (BIM).
  • Mining: Map underground tunnels where GPS is unavailable.
  • Forestry: Collect data on tree density, height, and terrain.

Conclusion

SLAM technology has revolutionized surveying by enabling fast, accurate, and mobile 3D scanning. By understanding its operation, mitigating errors, and following best practices, surveyors can achieve survey-grade accuracy in both simple and complex environments. SLAM’s versatility and independence from GPS make it indispensable in indoor mapping.

Whether you’re an experienced surveyor or new to the field, leveraging SLAM technology can  enable you to work smarter, faster, and more cost-effectively. However, many surveyors prefer Terrestrial Laser Scanning (TLS) for tasks requiring higher precision and stable data capture, as TLS remains more reliable for certain high-accuracy needs.

As mobile mapping systems and SLAM algorithms continue to improve, they will undoubtedly play a central role in the future of surveying and 3D scanning.
